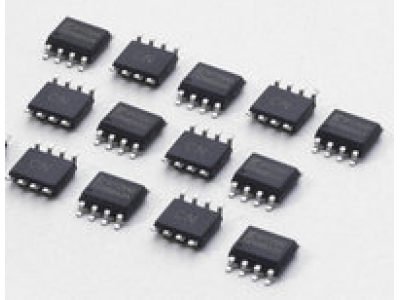

SP725ABG


    The SP725 is an array of SCR/Diode bipolar structures for ESD and overvoltage protection of sensitive input circuits.The SP725 has 2 protection SCR/Diode device structures per input. There are a total of 4 available inputs that can be used to protect up to 4 external signal or bus lines. Overvoltage protection is from the IN (Pins 1 - 4) to V+ or V-.




    •
                                            Brand：
                                            Littelfuse
      •

    •
                                            Classification：
                                            TVS
      •

    •
                                            Voltage：
                                            30V
      •

    •
                                            Current：
                                            9A
      •






































    Part Number

    Temp. Range (oC)

    Package
    Marking
    Min. Order Qty.
          SP725ABG
          -40 to 105
          8 Ld SOIC
          SP725AB(T)G1
          60
          SP725ABTG
          -40 to 105
          8 Ld SOIC Tape and Reel
          SP725AB(T)G1
          60
