0468 Series Slo-Blo? SMF

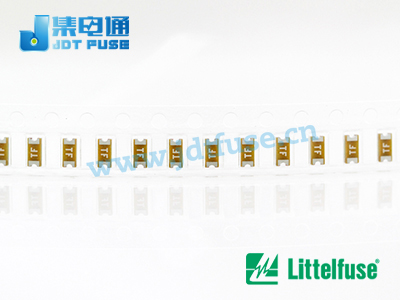

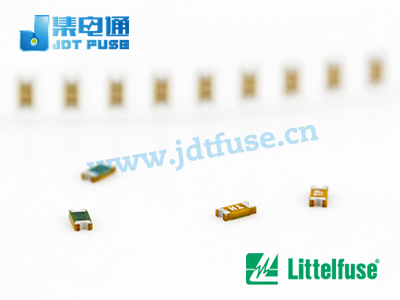

    The 468 Series Slo-Blo? Surface Mount Fuse (SMF).




    •
                                            Brand：
                                            Littelfuse
      •

    •
                                            Classification：
                                            SMD Fuse
      •

    •
                                            Voltage：
                                            32V,63V
      •

    •
                                            Current：
                                            0.5A~3A
      •




































    Description:
    　The 468 Series Slo-Blo? Surface Mount Fuse (SMF) is a small (1206 size) thin-film device designed for secondary protection of circuits used in space constrained applications such as hand-held portable electronic devices.
    　This series is 100% lead-free and meets the requirements of the RoHS directive. New Halogen-Free 468 Series fuses are available–to order use the “HF” suffix. See Part Numbering section for additional information.

    Features:
    ? Complies with electronic industry environmental standards for lead reduction.
    ? Package is visually distinct from fastacting version for easy identification.
    ? Product is compatible with lead-free solders and higher temperature profiles.

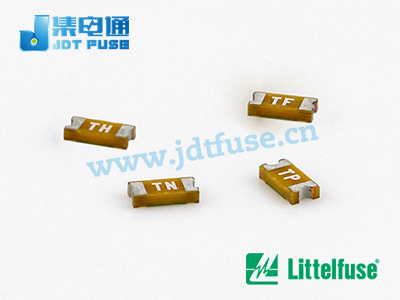

    ? Top side marking allows visual verification of amperage rating.
    ? Time delay feature withstands high inrush currents and prevents nuisance openings.


    Applications:
    Secondary protection for space constrained applications:
    ? Cell phones
    ? DVD players
    ? Battery packs
    ? Hard disk drives.
    ? Digital cameras


    型號
    Ampere
    Rating
    (A)
    Amp
    Code　
    Max
    Voltage
    Rating
    (V)　
    Interrupting
    Rating
    Nominal Code
    Resistance
    (Ohms)
    Nominal
    Melting
    I2t(A2sec)
    Nom
    Voltage
    Drop
    (mV)
    Nom
    Power
    Dissipation
    (W)
    0468.500NRHF
      0.50
      .500
      63
      50A@63 VAC/VDC
      0.27000
      0.0310
    156.77
      0.0784
    0468001.NRHF
      1.00
      001.
      63
      0.0790
      0.1270
      94.70
      0.0947
    046801.5NRHF
      1.50
      01.5
      63
      0.0440
      0.2880
      82.32
      0.1235
    0468002.NRHF
      2.00
      002.
      63
      35A @63 VAC 50A @63 VDC
      0.0325
      0.5060
      77.27
      0.1545
    046802.5NRHF
      2.50
      02.5
      63
      0.0240
      1.0110
      73.92
      0.1848
    0468003.NRHF
      3.00
      003.
      32
      50A @32 VAC/VDC
      0.01950
      1.2700
      72.95
      0.2189
